BMS-5 PLUS Dual chamber offset smoker XL

Delivery time and price will be negotiated separately.

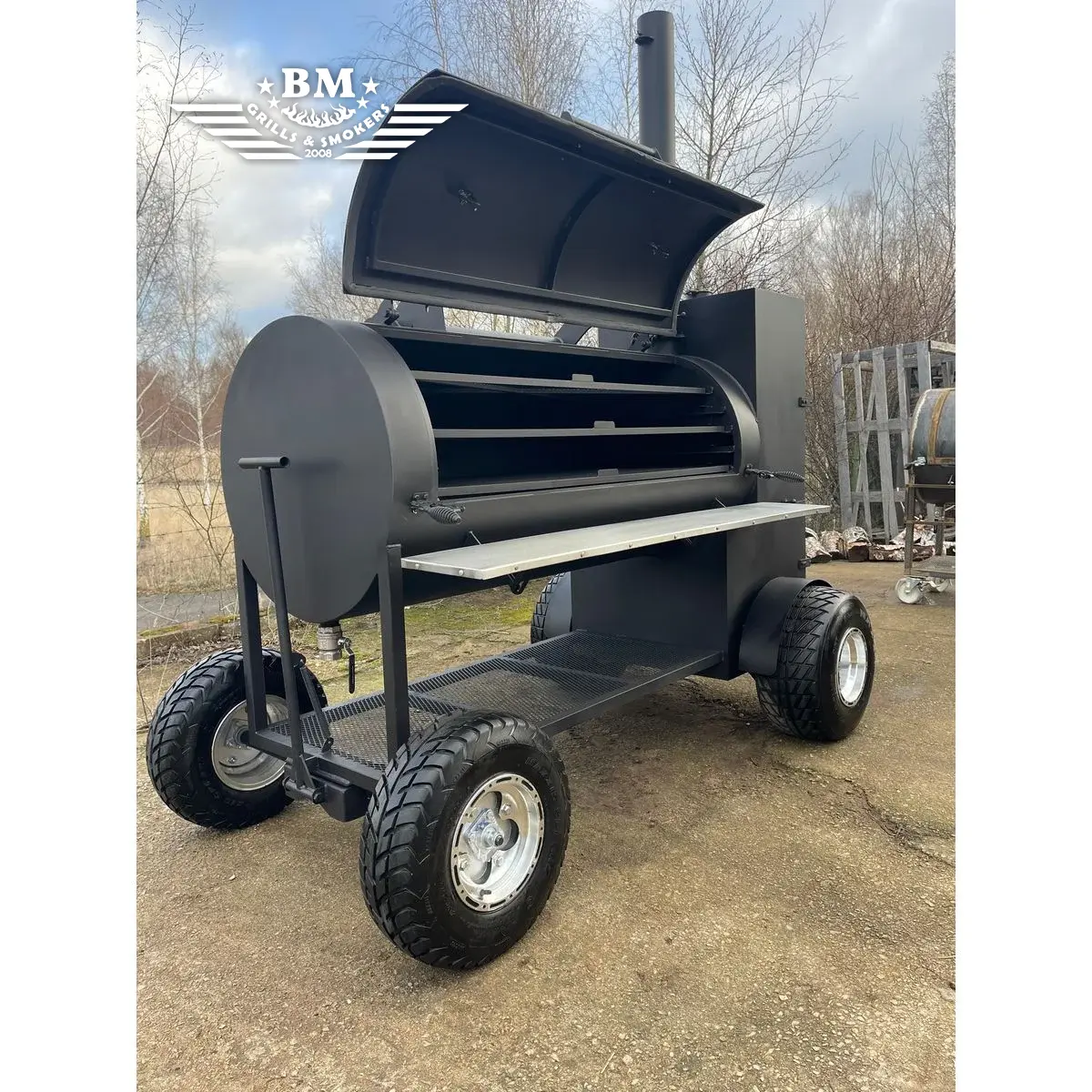

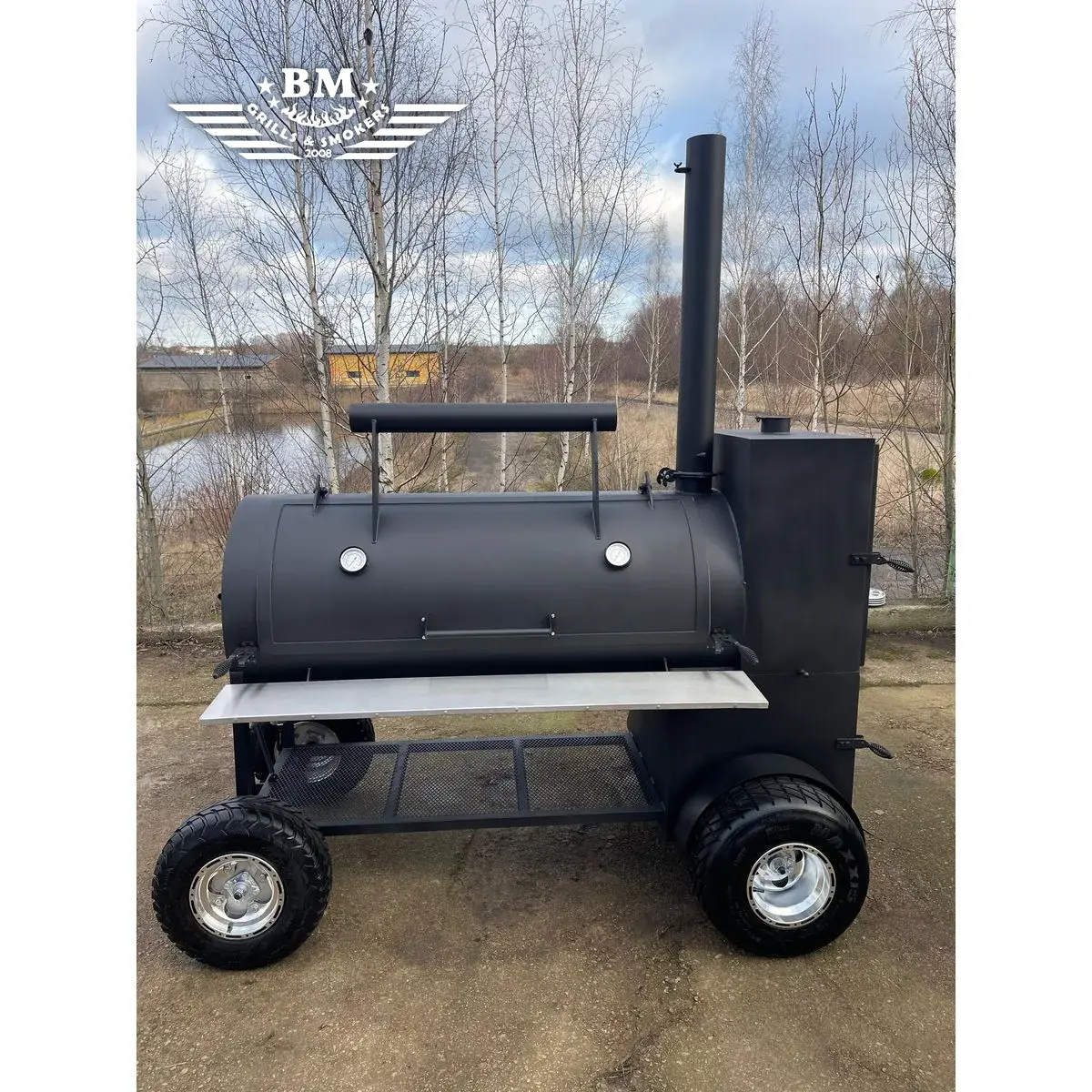

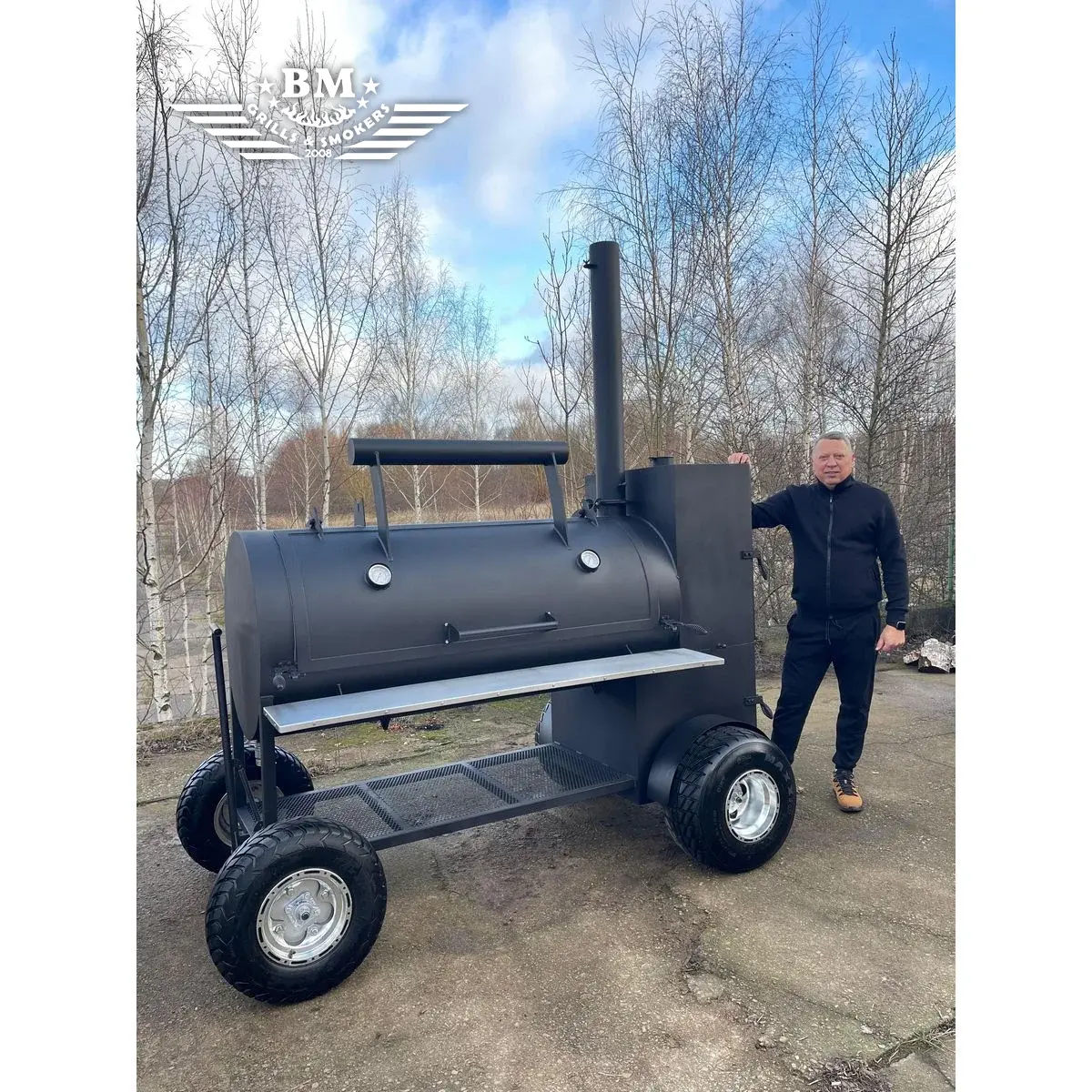

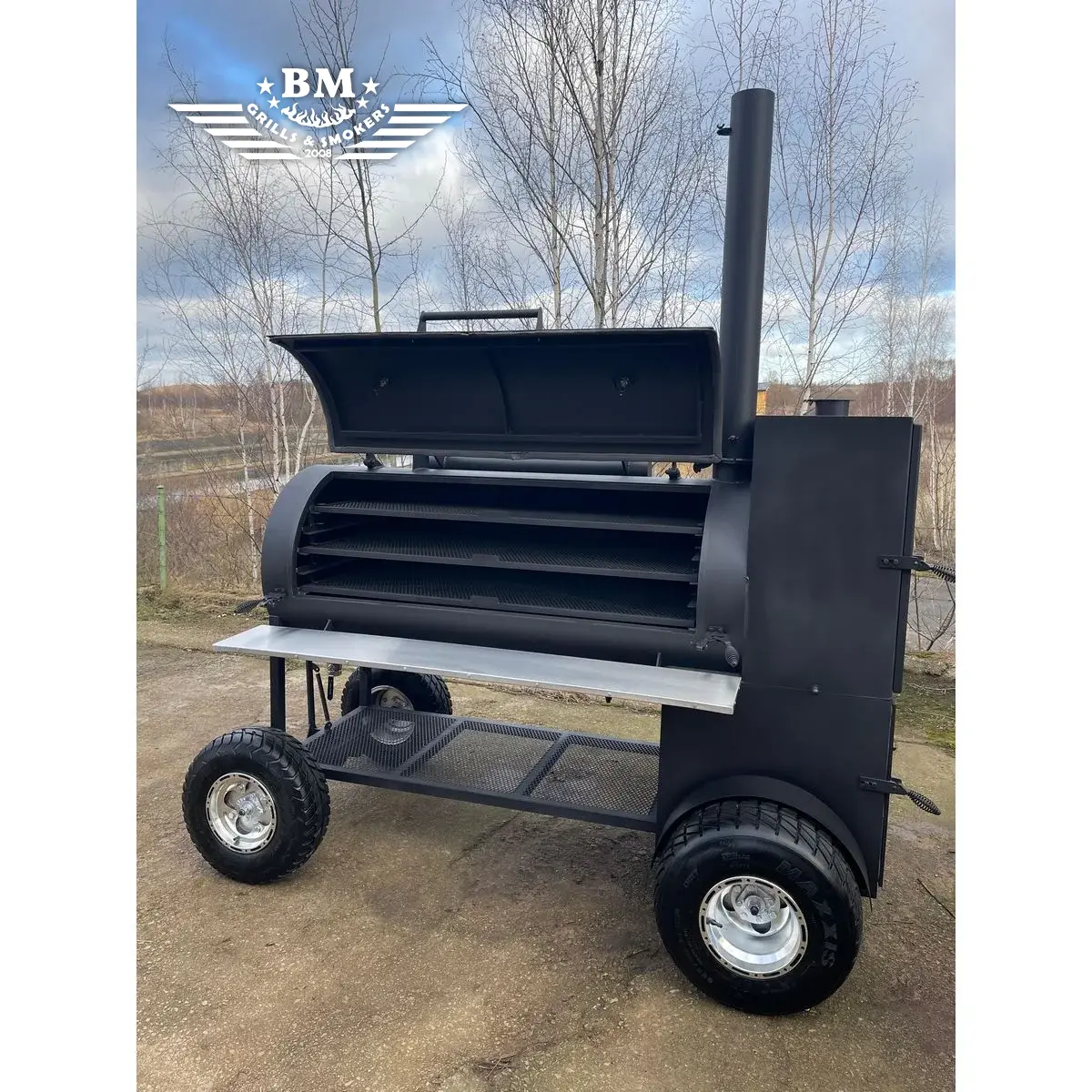

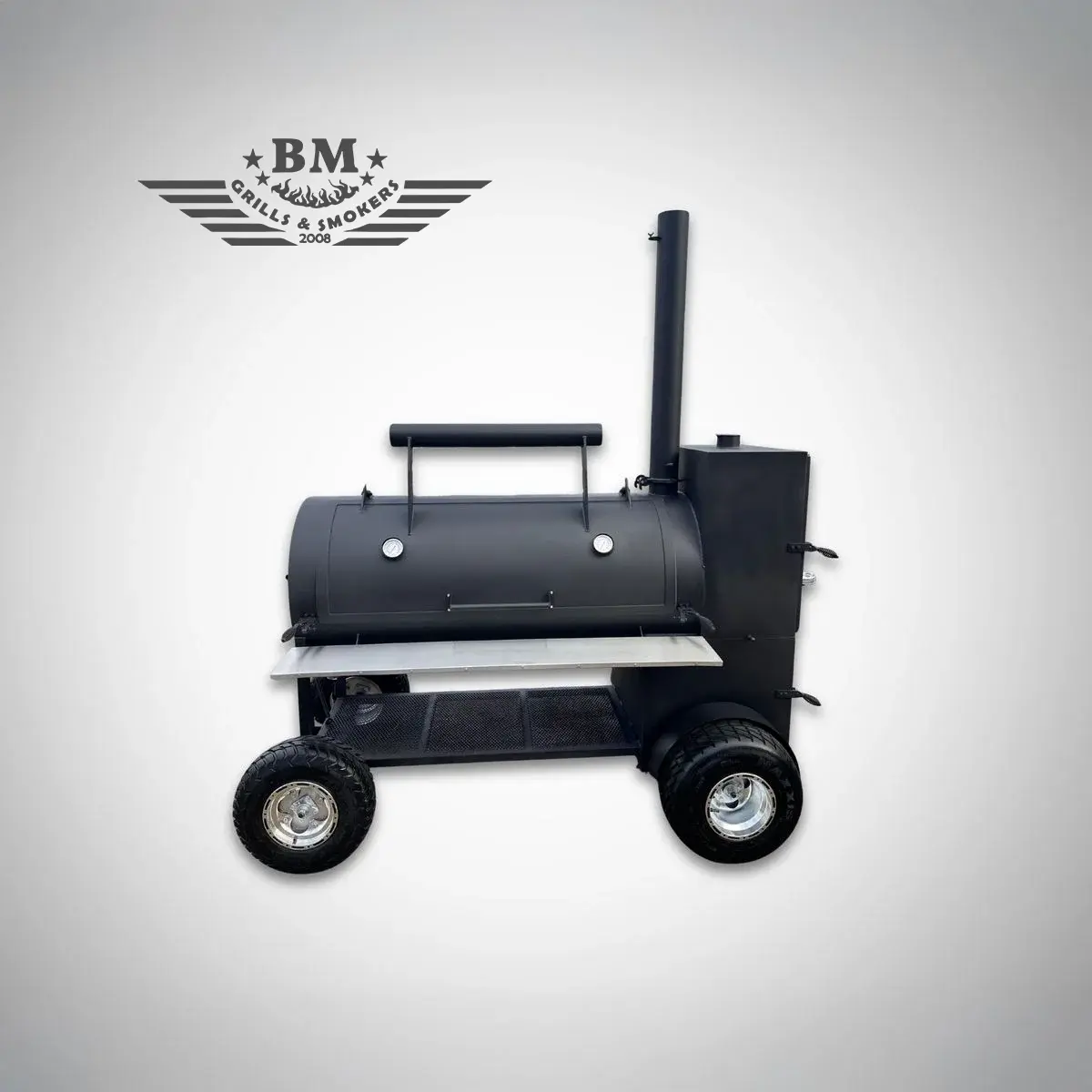

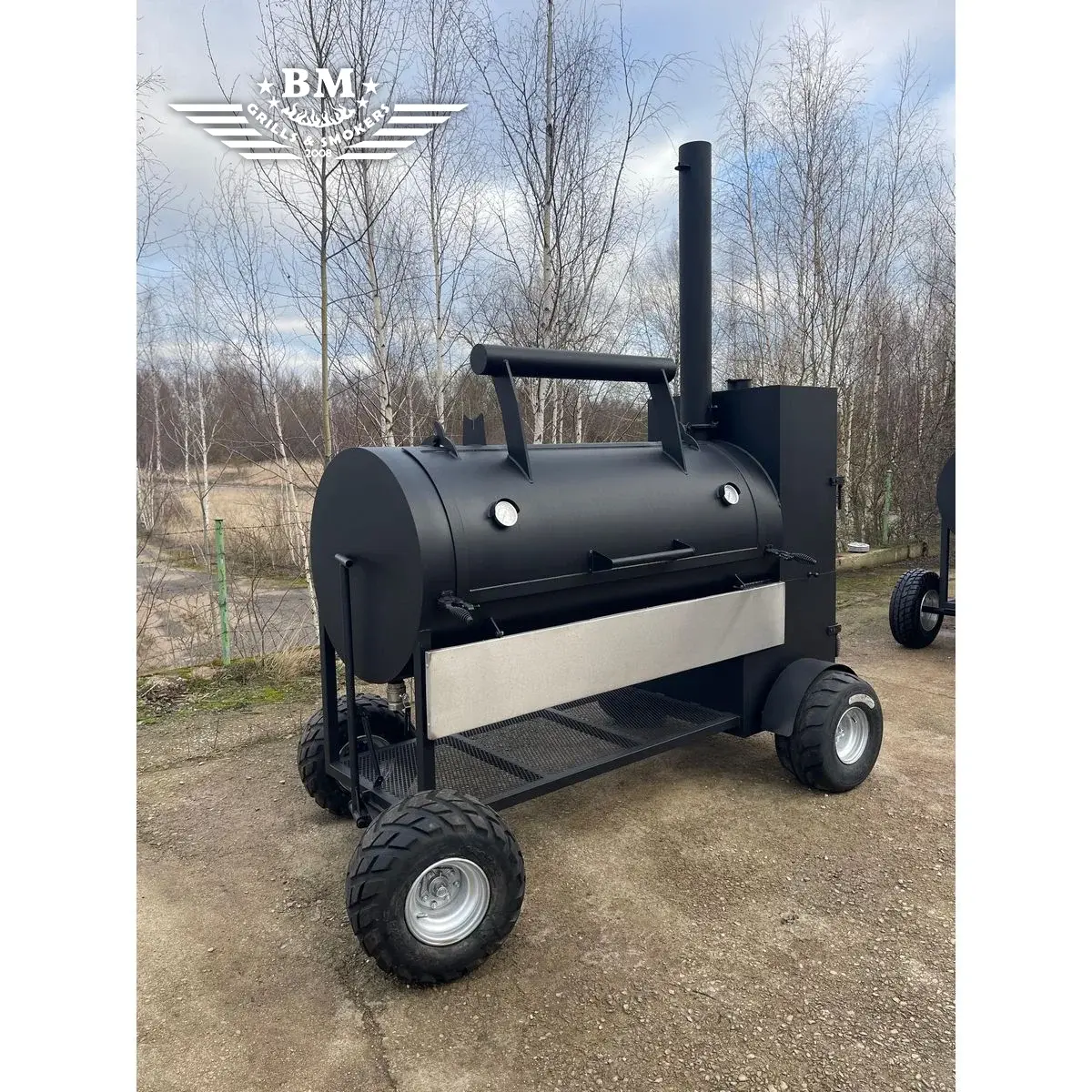

The latest version of the BMS-5 PLUS Dual chamber offset smoker XL with many improvements – now with large wheels for easier movement on grass, fields or uneven surfaces, as well as a more attractive design. The smoking / cooking chamber of the latest version of the BMS-5 is longer than in previous versions and has a wider diameter. A large cabinet-type smoking / cooking / warming chamber has been added to the back, above the firebox, an extended folding chimney, an insulated and improved firebox, a fuel bag, an improved air intake system for better air flow, a lid counterweight, a tight lid and door to prevent smoke leakage and maintain internal temperature, etc.

This is a heavy-duty traditional American “reverse flow” smoker – the most popular among bars, restaurants and street food vendors!

Fired with wood or charcoal – resulting in an authentic smoke flavor.

The BMS-5 PLUS Dual chamber offset smoker XL smoker expands your BBQ possibilities – the smoke enters the chamber indirectly, so the end result is always moist, soft and with a rich smoky aroma.

(Viewing and collection available on site)

DELIVERY:

Please inquire about shipping prices and estimated delivery times before purchasing!

Note: A forklift is required for delivery to unload the large trailer from the truck. The trailer is mounted on a large pallet. Good access for trucks (HGV) and no traffic restrictions are required.

(The pallet is too heavy to be unloaded with a smaller van lift – total weight 720 kg).

Technical specifications

SMOKING / COOKING CHAMBER (horizontal):

• The cooking chamber is made of 5 mm thick rolled steel plate
• Chamber dimensions: 170 cm long x 75 cm diameter
• The chamber has three retractable cooking grates (additional grates can be ordered separately)
• Lower grate: 143 cm x 68 cm
• Middle grate: 143 cm x 70 cm
• Upper grate: 143 cm x 55 cm
• A stainless steel drip tray with drainage is installed under the grate, for draining fat and juices through the tap at the bottom
• The chamber lid has two stainless steel thermometers (Fahrenheit and Celsius scales)
• The chamber lid is sealed with a fiberglass gasket – for smoke leakage and temperature maintenance
• Chamber with retractable and foldable chimney (for convenient transportation) and internal air damper regulator
• Foldable front stainless steel shelf
• Sturdy door locks with heat-resistant handles

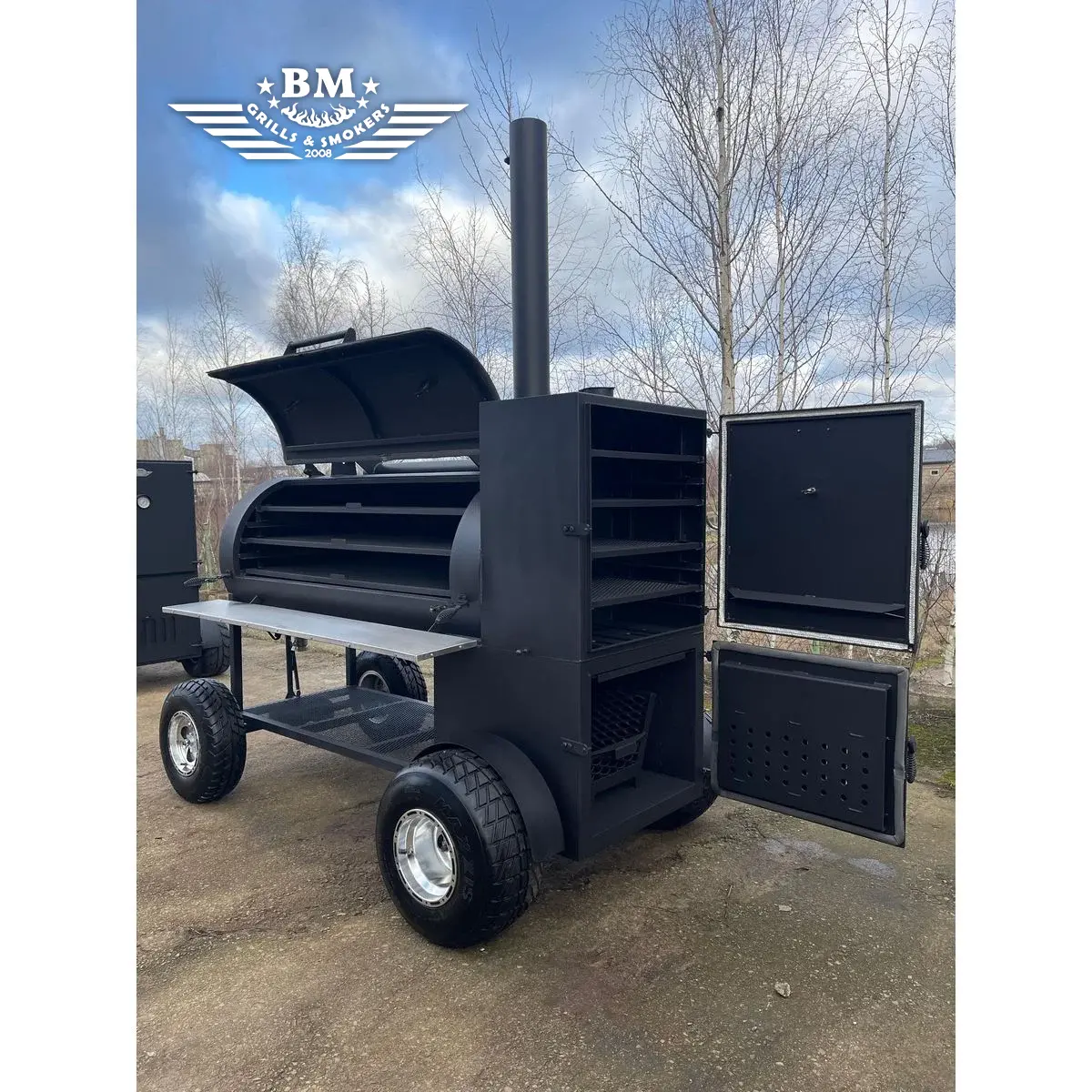

CABINET-TYPE SMOKER/STOVE/WATERING CHAMBER:

• Chamber dimensions: 73 cm wide x 42 cm deep x 80 cm high
• Four pull-out cooking grates (64 cm x 39 cm)
• Included drip/water tray
• Air and heat dampers for temperature control
• Chamber has a separate chimney with an adjustable damper
• Door is sealed with fiberglass cord to prevent smoke from escaping and retain heat
• Door with stainless steel thermometer (Fahrenheit and Celsius scales)
• Door lock with heat-resistant handle

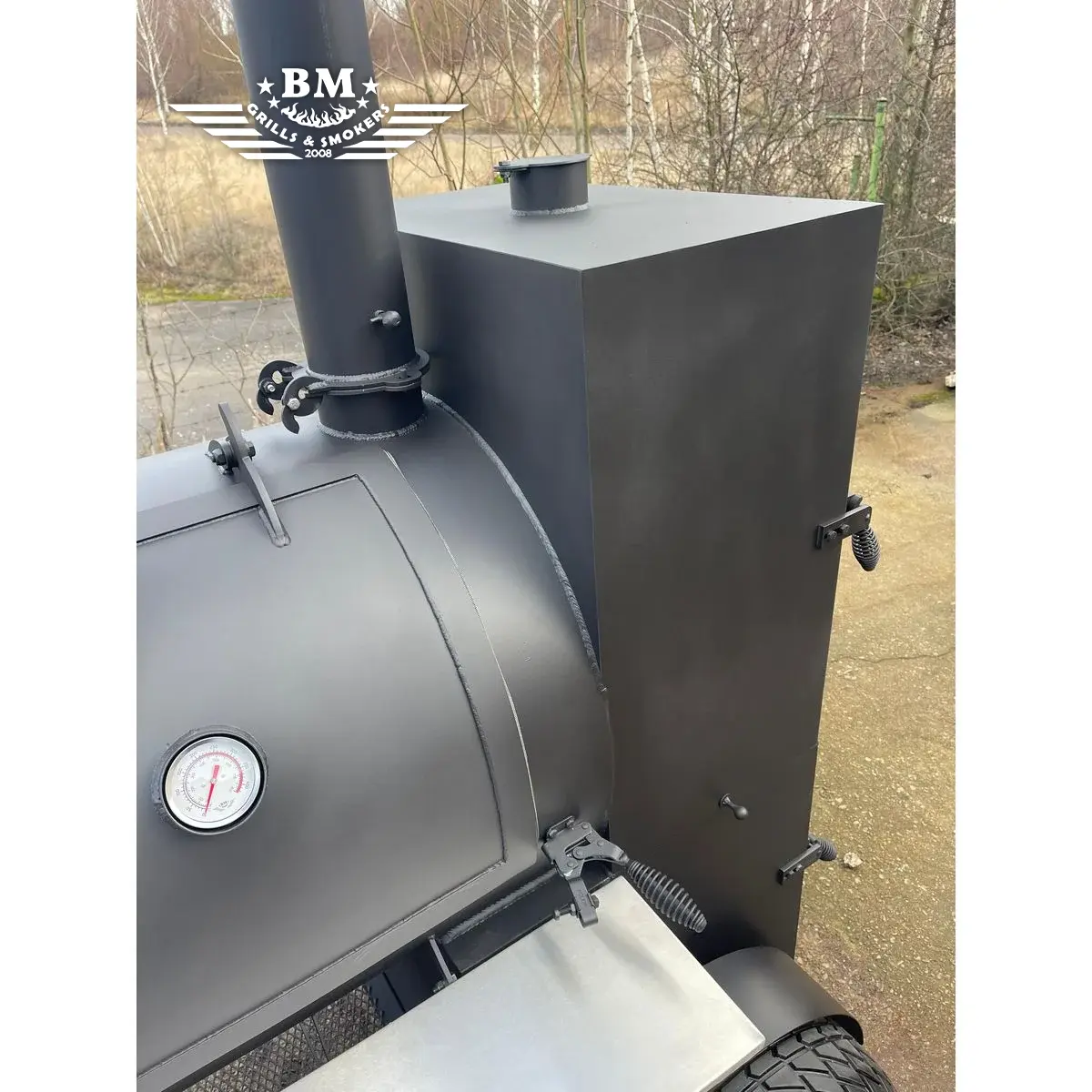

COMBUSTION CHAMBER:

• Combustion chamber is made of 5 mm inner and 3 mm outer steel walls, door – 8 mm thick steel, with 5 mm thick heat deflector plate
• Door with air intake dampers – for air flow and temperature regulation
• The door is sealed with a fiberglass gasket
• The fireplace is equipped with a new type of heavy coal/firewood basket
• Door lock with heat-resistant handle

OTHER INFORMATION:

• Completely new construction made of steel sheets with new components, coated with heat-resistant paint
• The smoker is mounted on a sturdy square steel frame with large wheels (with brakes)
• Front wheels with swivel construction
• In the lower part – a sturdy mesh shelf for storing things
• Total length: 235–250 cm (depending on the size of the wheels)
• Total height: 280 cm (with the chimney extended)
• Total width: 100 cm (including the front shelf)
• Total weight: 720 kg
• Indeed, the cooking capacity is now even larger than in the previous BMS-5 version in the photos with food
• Fuel type: firewood or coal.
