BM-1 Multifunctional BBQ Trailer L

Delivery time and price will be negotiated separately.

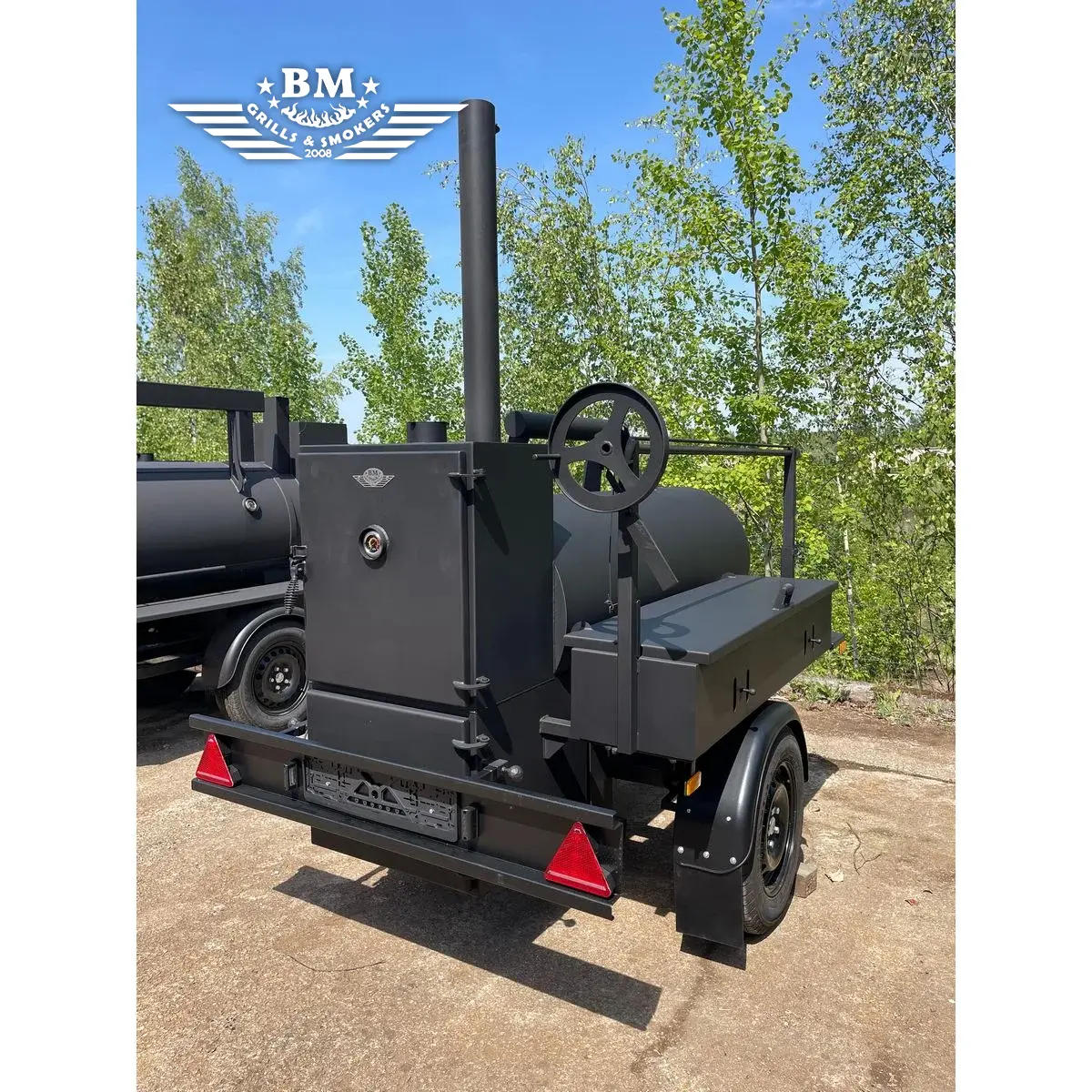

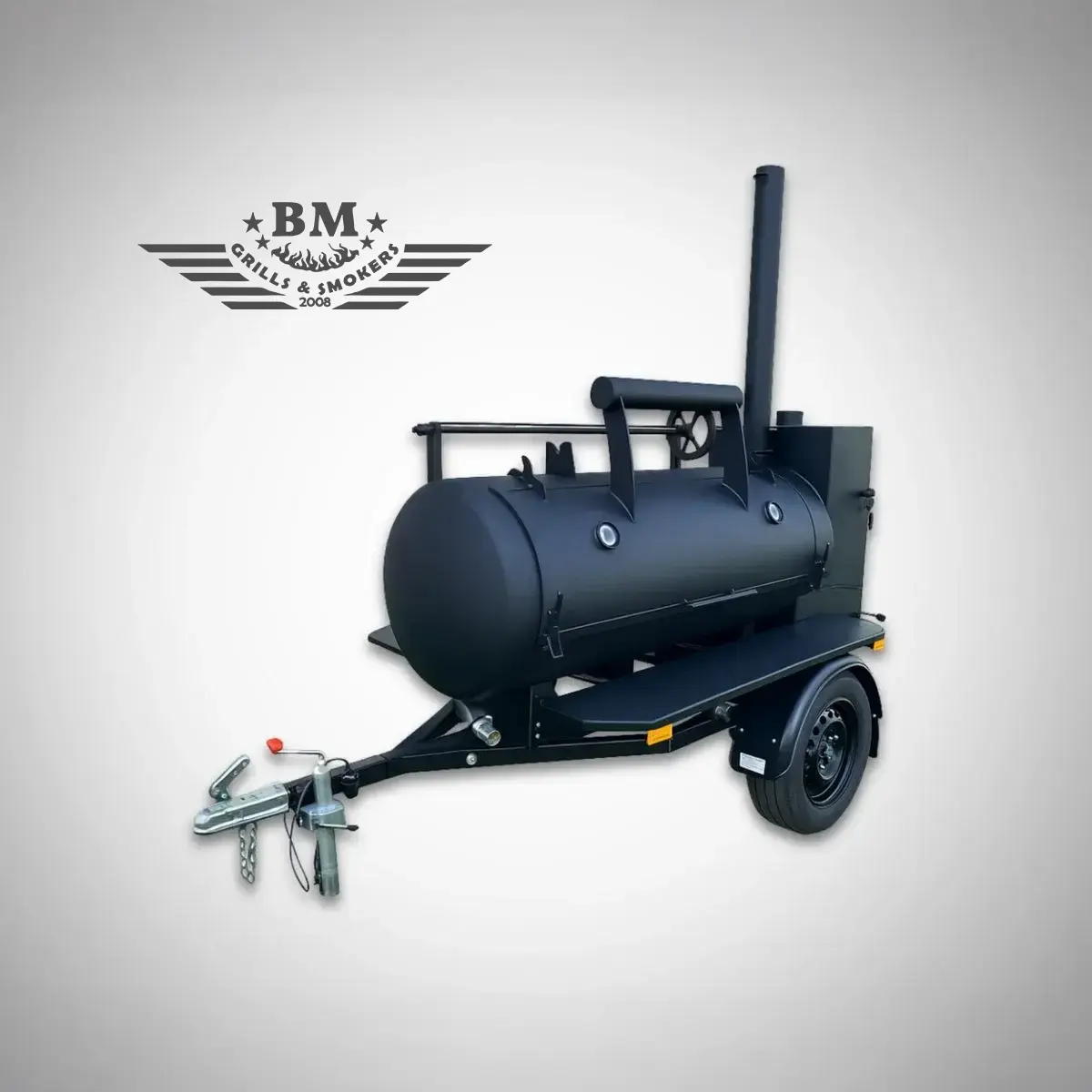

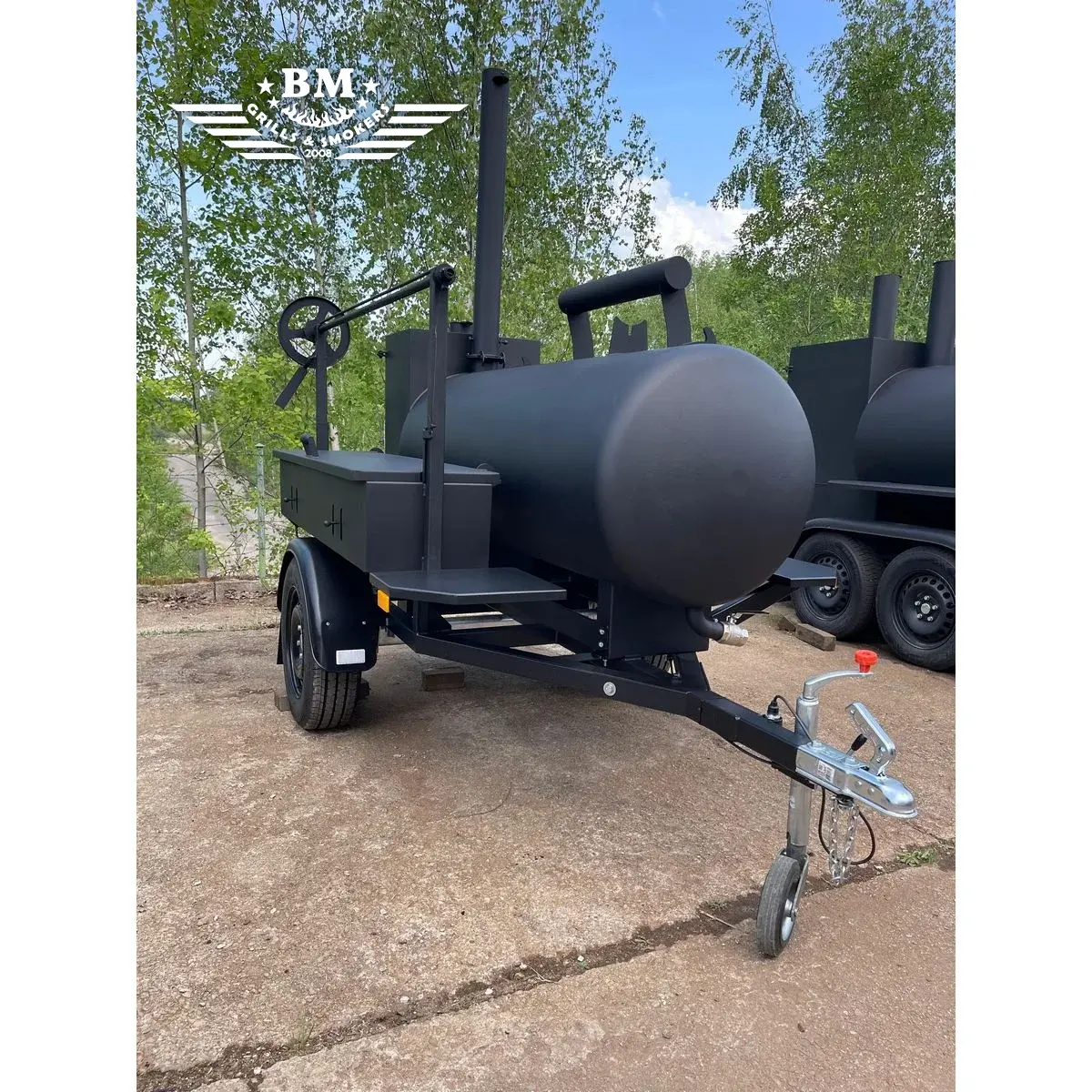

The BM-1 multifunctional BBQ trailer L is a multifunctional, medium-sized mobile grill and smoker in one. It combines a reverse draft smoker/heating chamber, a cabinet-type smoker/heater and an Argentine-style grill – all mounted on a single-axle trailer chassis up to 750 kg.

It is a great choice for both family businesses and events, fairs or BBQ competitions. It allows you to grill, smoke and heat food in three independent chambers at the same time.

Features

• Reverse draft smoker – for low & slow or hot & fast cooking

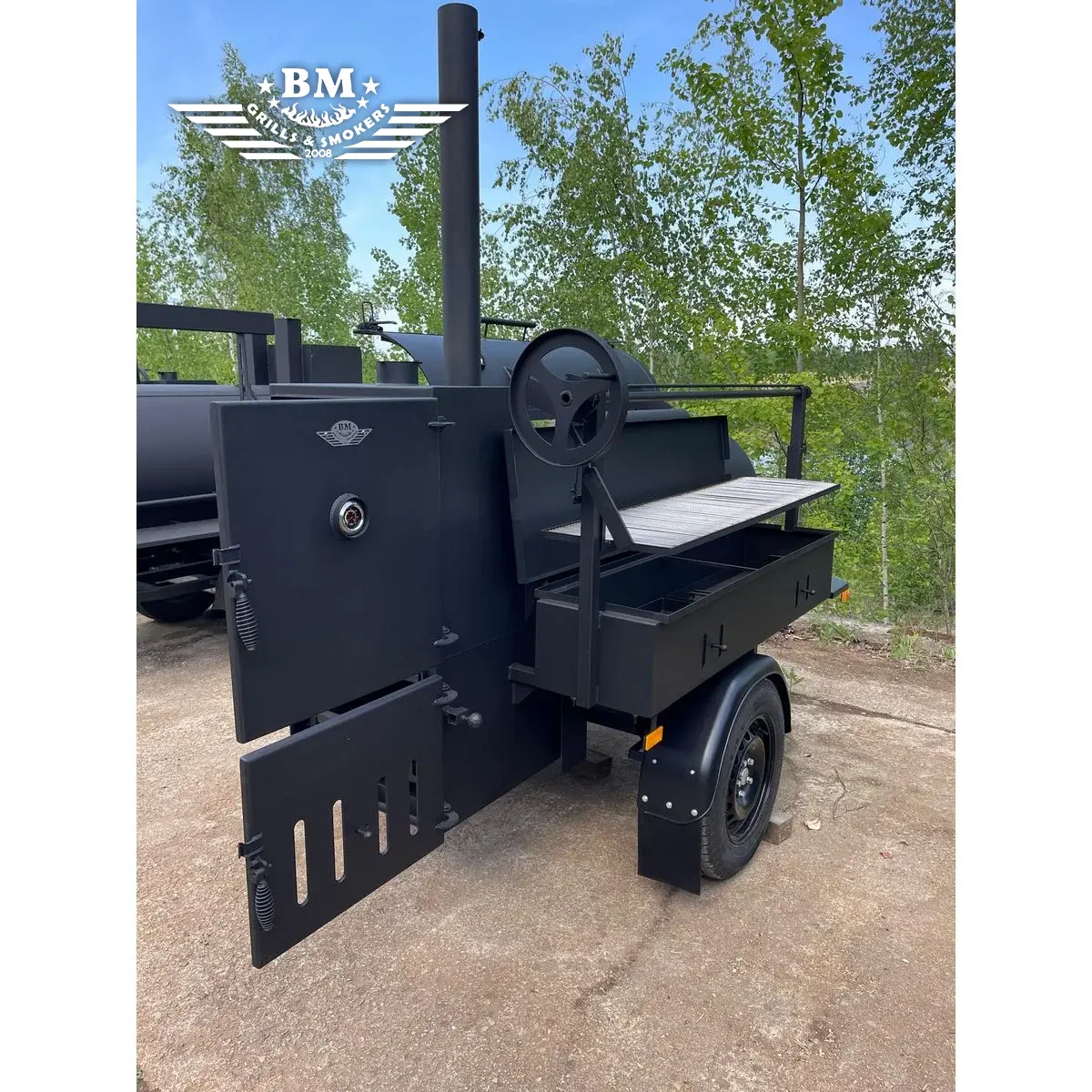

• Vertical cabinet-type smoker/heater with temperature control

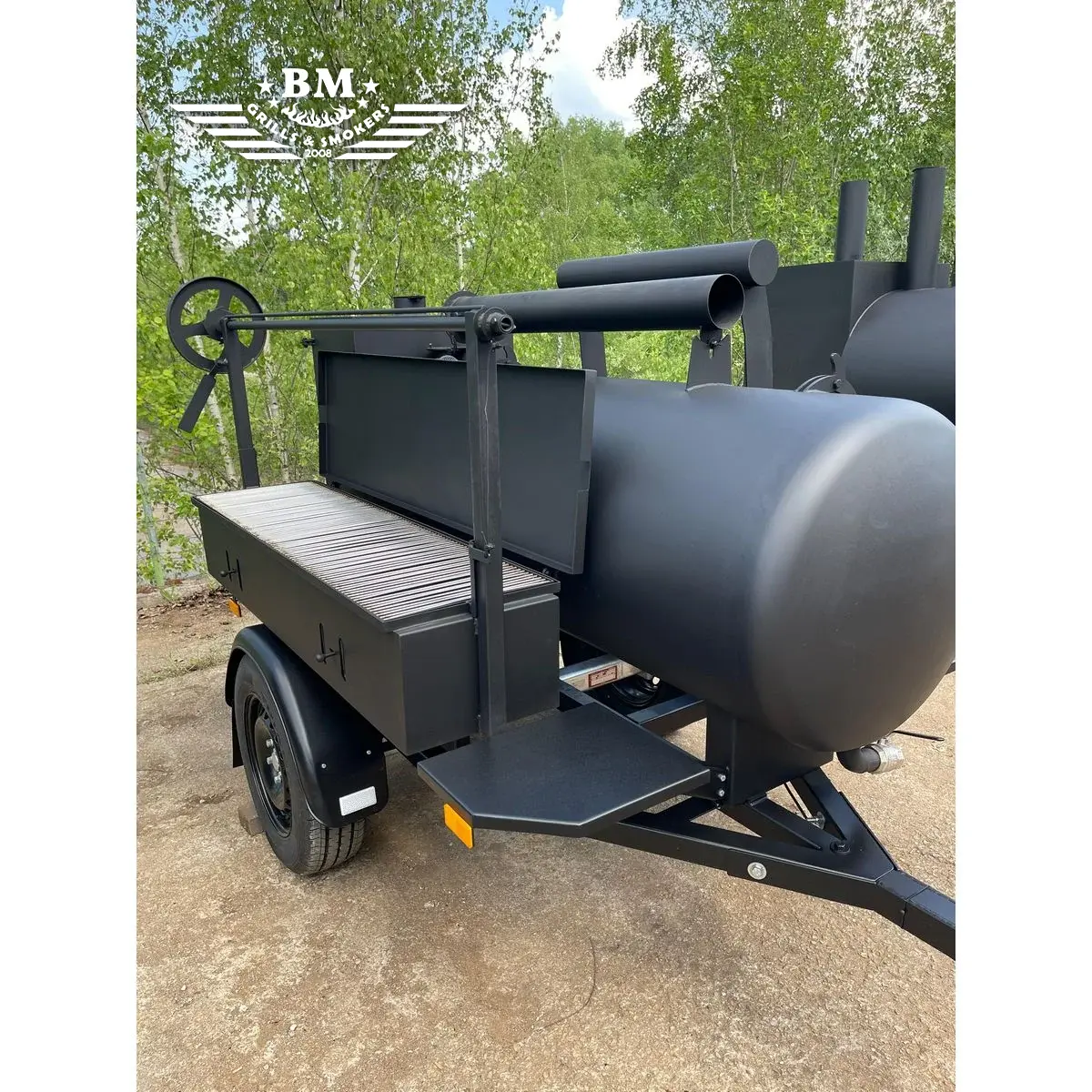

• Argentine style grill with adjustable grate height
• Three independent cooking chambers
• Fat drainage system – easy maintenance
• Extended chimney for better air circulation
• Sealed lids with heat-resistant fiberglass rope

New version improvements

• Lid counterweight for horizontal chamber
• Better insulated chambers – lower fuel consumption
• Longer chimney – cleaner smoke
• Sturdy 4-5 mm thick steel construction
• Coated with heat-resistant paint

Specifications

• Overall dimensions: length 300 cm, width 155 cm, height 165 cm (235 cm when the chimney is raised vertically)
• Total weight: 740 kg (can be pulled car, minibus or truck)

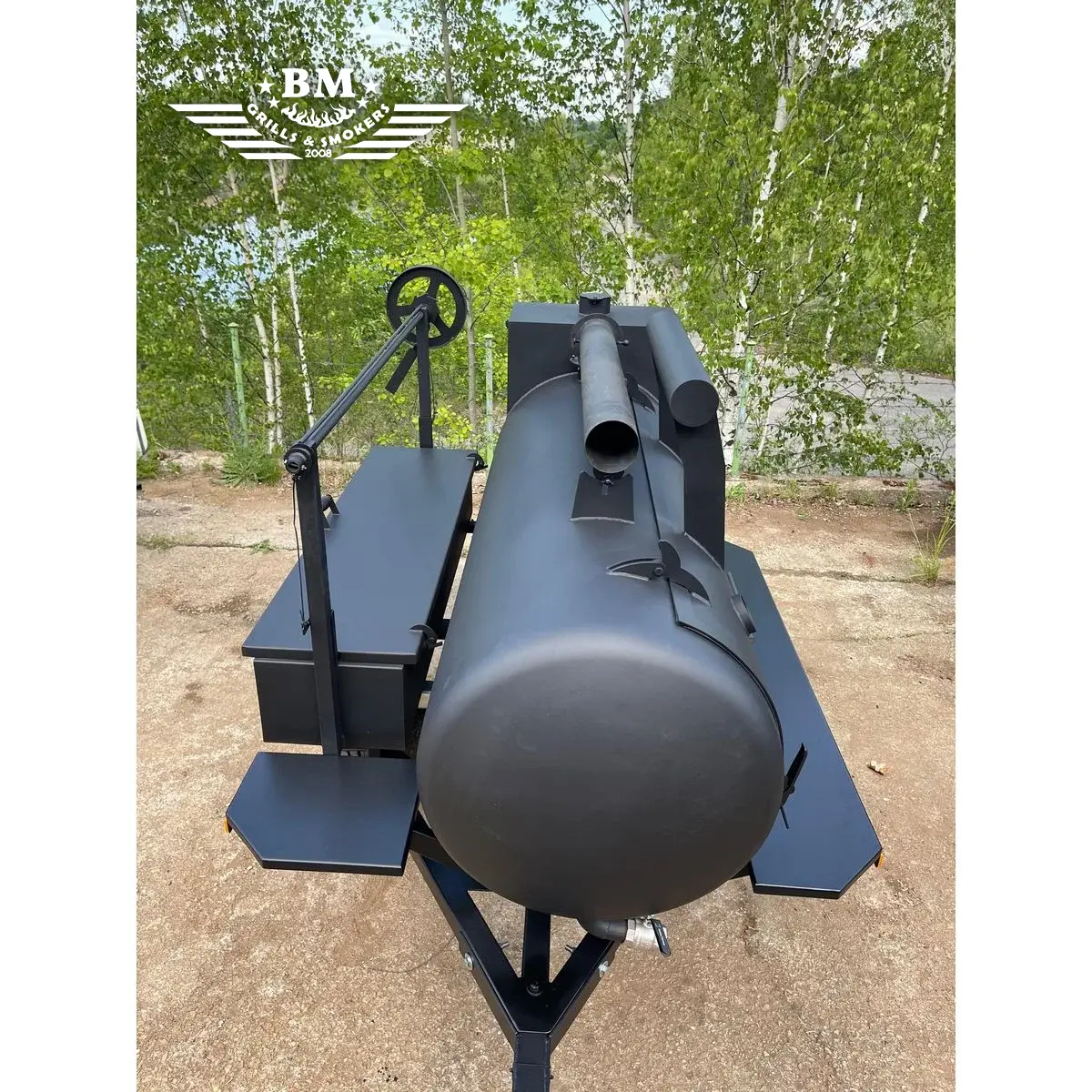

• Main chamber: Ø70 cm diameter, 185 cm long

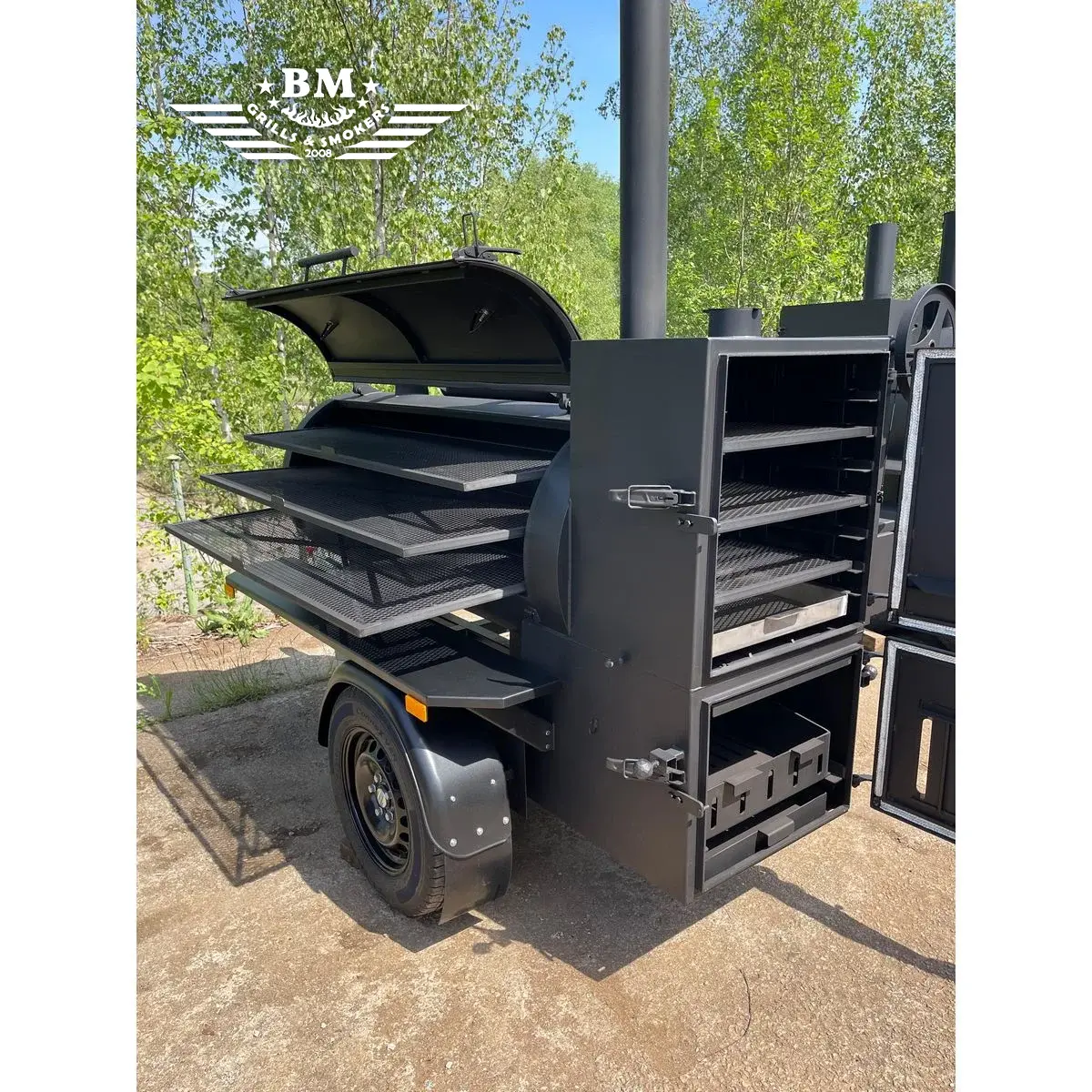

• Grate levels: 3 extendable, height-adjustable (65×152 cm x2, upper 48×152 cm)
• Thermometers: 2 pcs. in the main chamber, 2 pcs. cabinet smoker
• Body material: 5 mm thick steel
• Surface: matte black heat-resistant paint
• Chimney: foldable for transport, longer for better traction
• Fat drain: stainless steel tray with ball valve

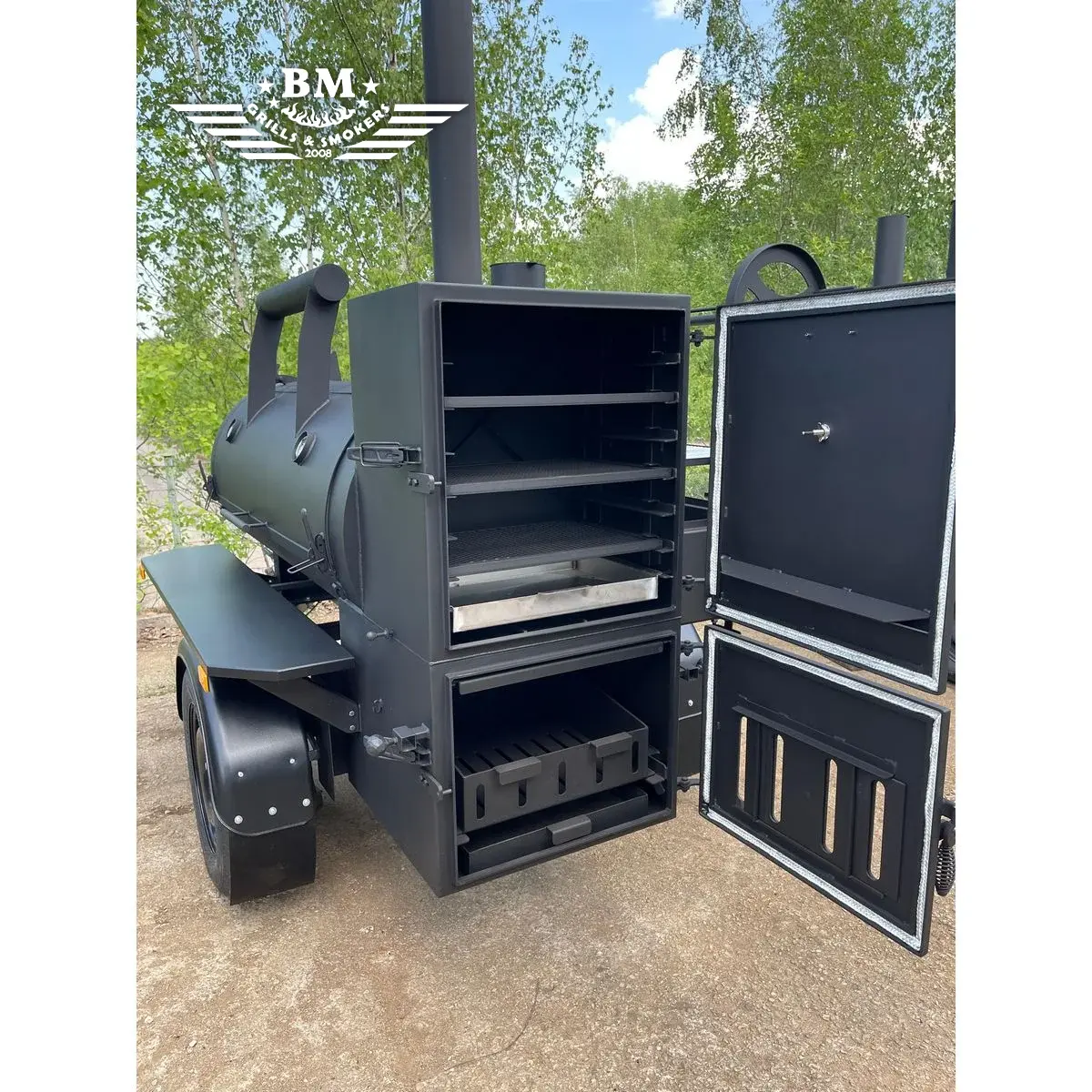

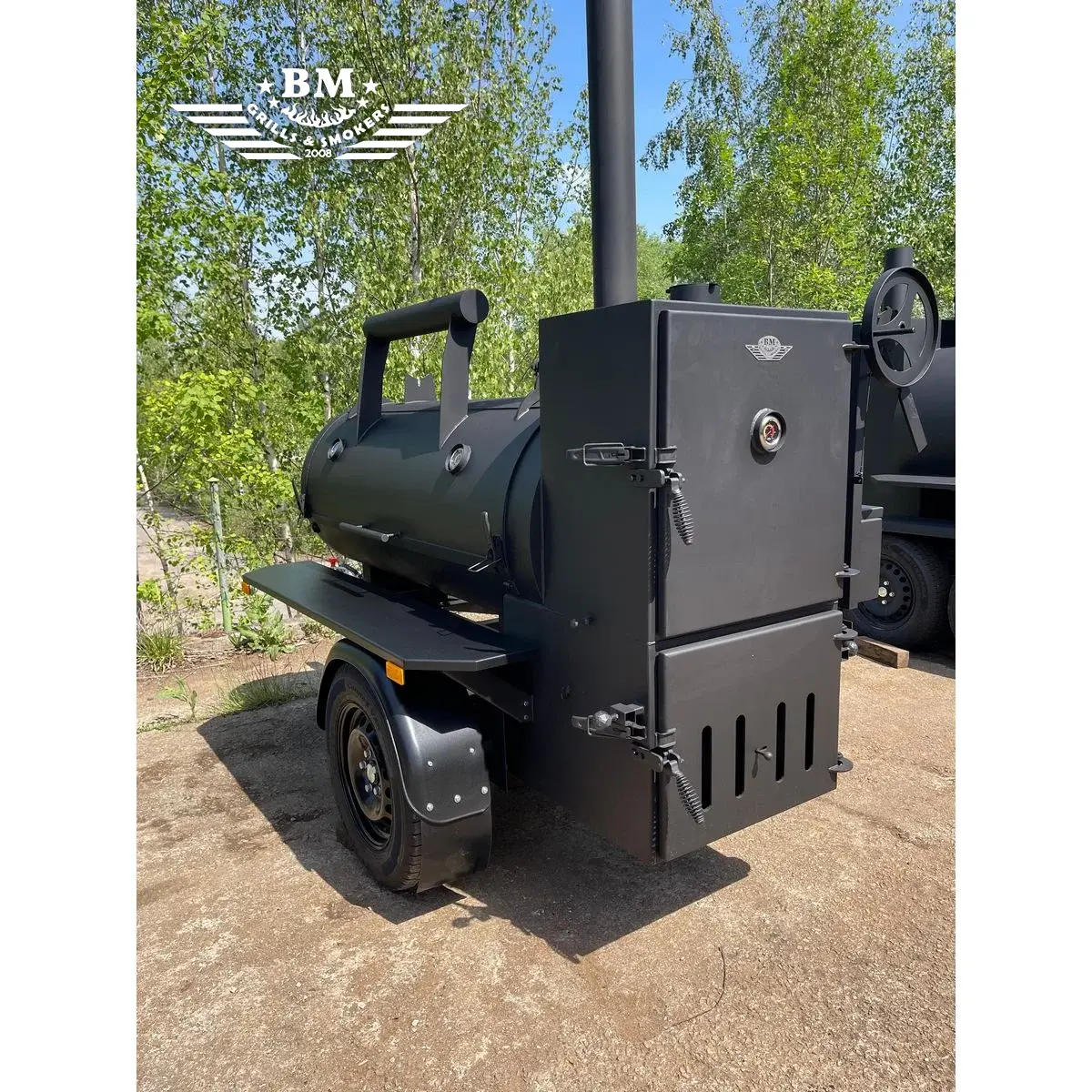

• Cabinet-type smoker: 3 shelves (55×40 cm), water/fat tray, air dampers and chimney damper
• Fuel: 60x61x50 cm, 5 mm steel walls, removable charcoal basket and ash tray

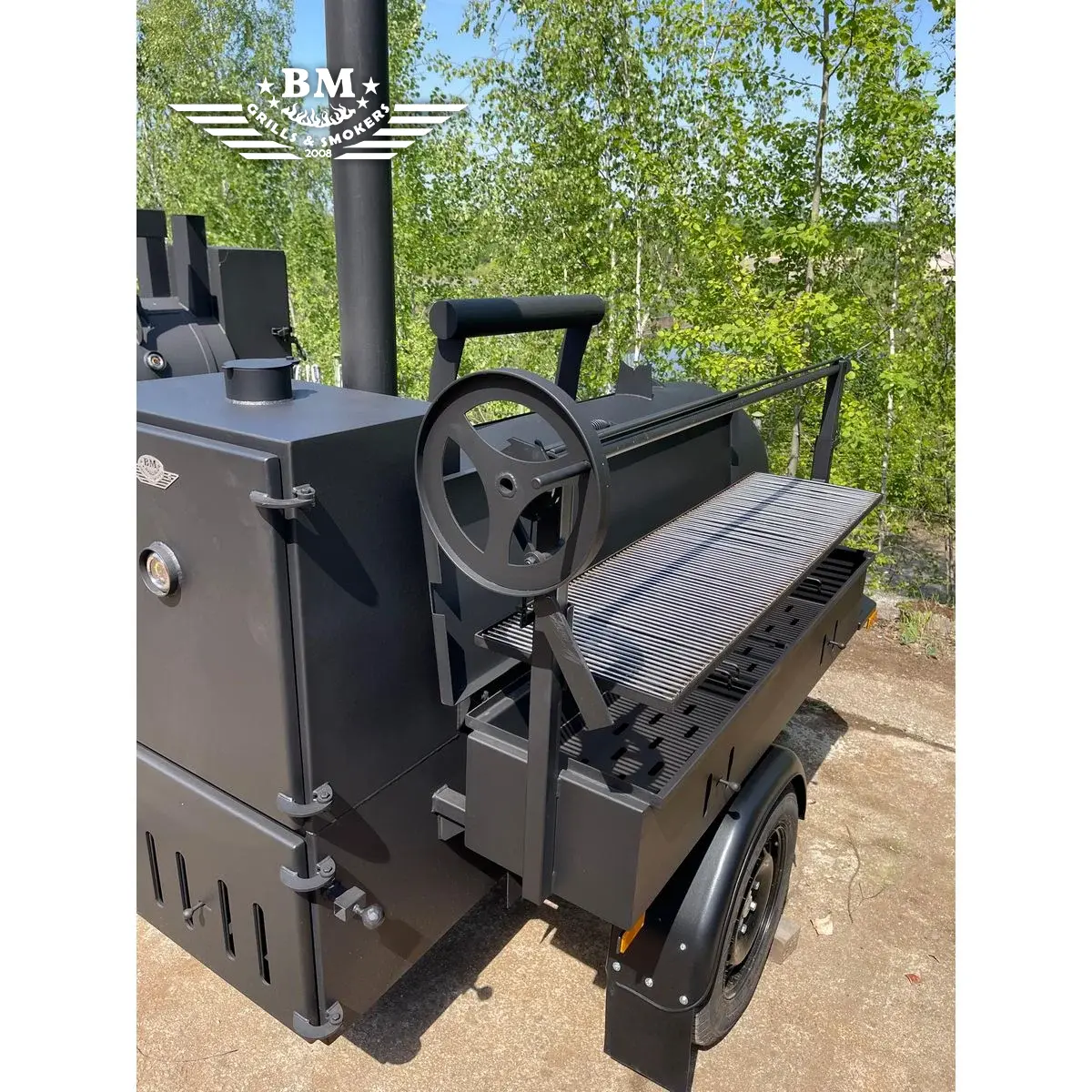

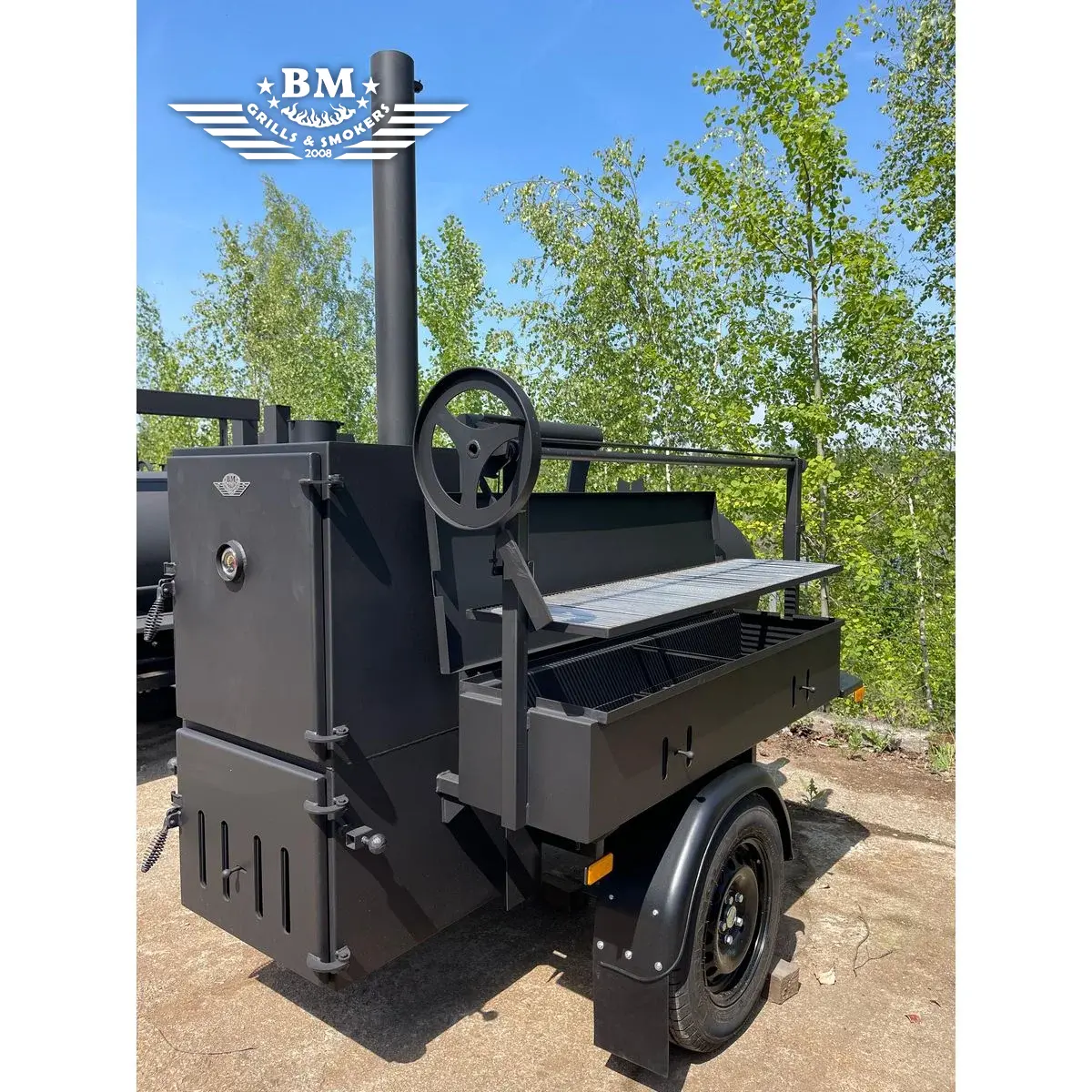

• Grill: Argentine type with stainless steel grates (144×38 cm), height adjustable up to 45 cm above the grill or 55–60 cm above the coals
• Grill control: manual lifting mechanism with brake
• Air flow regulation: adjustable dampers on the firebox and chimney
• Thermometers: three 57 mm stainless steel easy-to-read dials
• Trailer: single-axle chassis with black wheels and new tires
• Lighting: full trailer lights
• Security: all doors and lids with locks
• Sealing: fiberglass gaskets – lower fuel consumption, better temperature control

Advantages

• Easy to use and clean
• Fast heat-up
• Even heating
• Reliable results
• Suitable for professional and private use

Delivery

In stock! Please contact us for price and delivery time before purchasing.

Note: Forklift required for unloading – trailer is delivered on a large pallet. Must have good access for trucks (HGV) without traffic restrictions. Local pickup is also possible.BM-1 Multifunctional BBQ Trailer
